Specifications

StandardPCB
Developed byIPC
Editions in this storePrint
Languages in this storeEnglish

About this standard

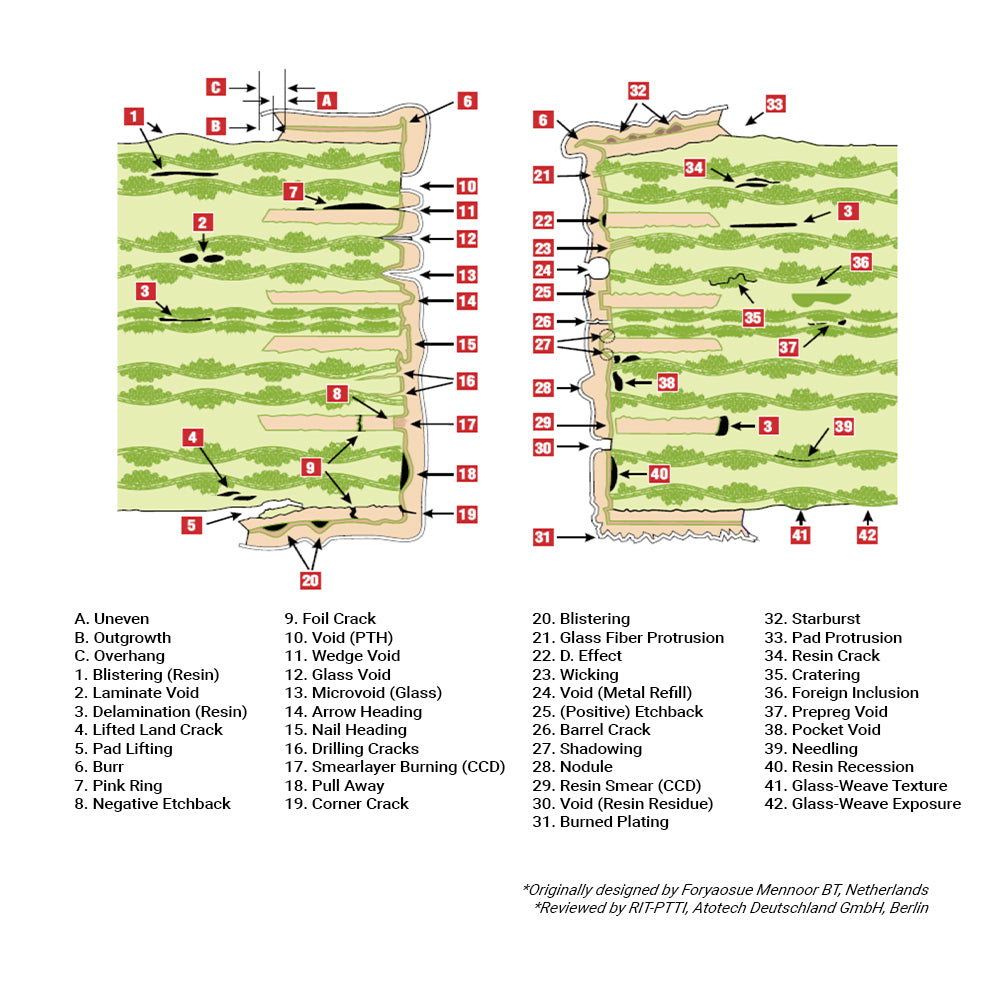

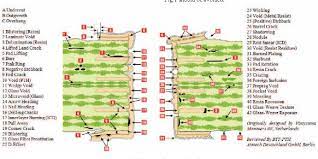

Dubbed the "nightmare microsection," this full-color, 24x36-inch (60 x 90 cm) wall poster identifies 42 phenomena that can be seen in cross-sections of plated-through holes. Outstanding visual for supporting discussions of common (and not so common) phenomena. All defects are labeled and match the language used in IPC standards IPC-A-600, IPC-6012 and IPC-T-50. Use this poster as a tool to assist your staff more identify issues and effectively troubleshoot your manufacturing operation. Originally developed by the PCB industry in Europe, updated by IPC.

Training AidsProduct code: MICRO-PST-0-P-0-EN-0

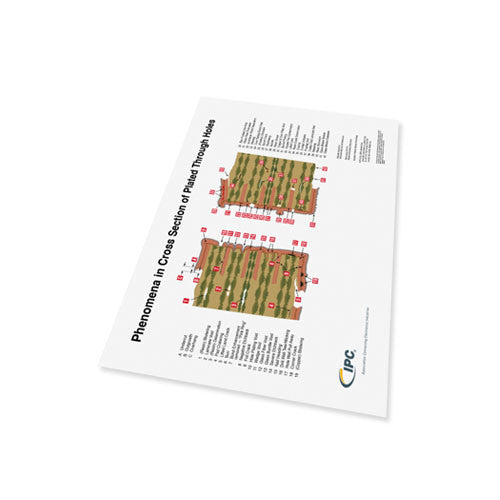

PCB Multi-Issue Microsection Wall Poster

Dubbed the "nightmare microsection," this full-color, 24x36-inch (60 x 90 cm) wall poster identifies 42 phenomena that can be seen in cross-sections of plated-through holes. Outstanding visual for supporting discussions of common (and not so common) phenomena. All defects are labeled and match the language...

  • IPC member pricing on every edition
